The Conspit CSD SimHub Dashboard brings race-grade instrumentation to your sim racing cockpit with precision, clarity, and immersive feedback.

This dashboard features a 5-inch IPS touchscreen display with an 854×480 resolution and 350 lumens brightness, delivering crystal-clear visuals even under challenging lighting. Four tactile encoder knobs give you fast, intuitive control—adjust brightness, change pages, or tweak settings without interrupting your drive. A wraparound LED array comprising 31 customizable RGB LEDs delivers dynamic feedback: RPM zones, flag indicators, session alerts, vehicle status, and more—all at a glance.

Built from race-grade CNC-machined aluminum alloy with sandblasted and anodised finishing, the CSD Dashboard is engineered for durability as well as style. It includes dual data ports at the rear for flexible cable routing, and multiple mounting options make it compatible with aluminium profile cockpits, and other sim setups. The dashboard connects via USB direct to PC and has full software support through SimHub—complete with ready-to-use dashboard/interface presets and comprehensive telemetry layouts.

The Conspit CSD Dashboard is designed to elevate immersion, awareness, and control in every race.

---

Key Specifications & Features

• Display: 5-inch IPS touchscreen, 854×480 resolution, 350 lumens, adjustable brightness

• Indicators: 31 individually customisable RGB LEDs for RPM, flags, warning alerts, vehicle status

• Controls: Four encoder (rotary) knobs + touchscreen interaction for page-switching, brightness, LED modes etc.

• Material & Build: CNC-machined aluminium alloy housing, sandblasted & anodised finish

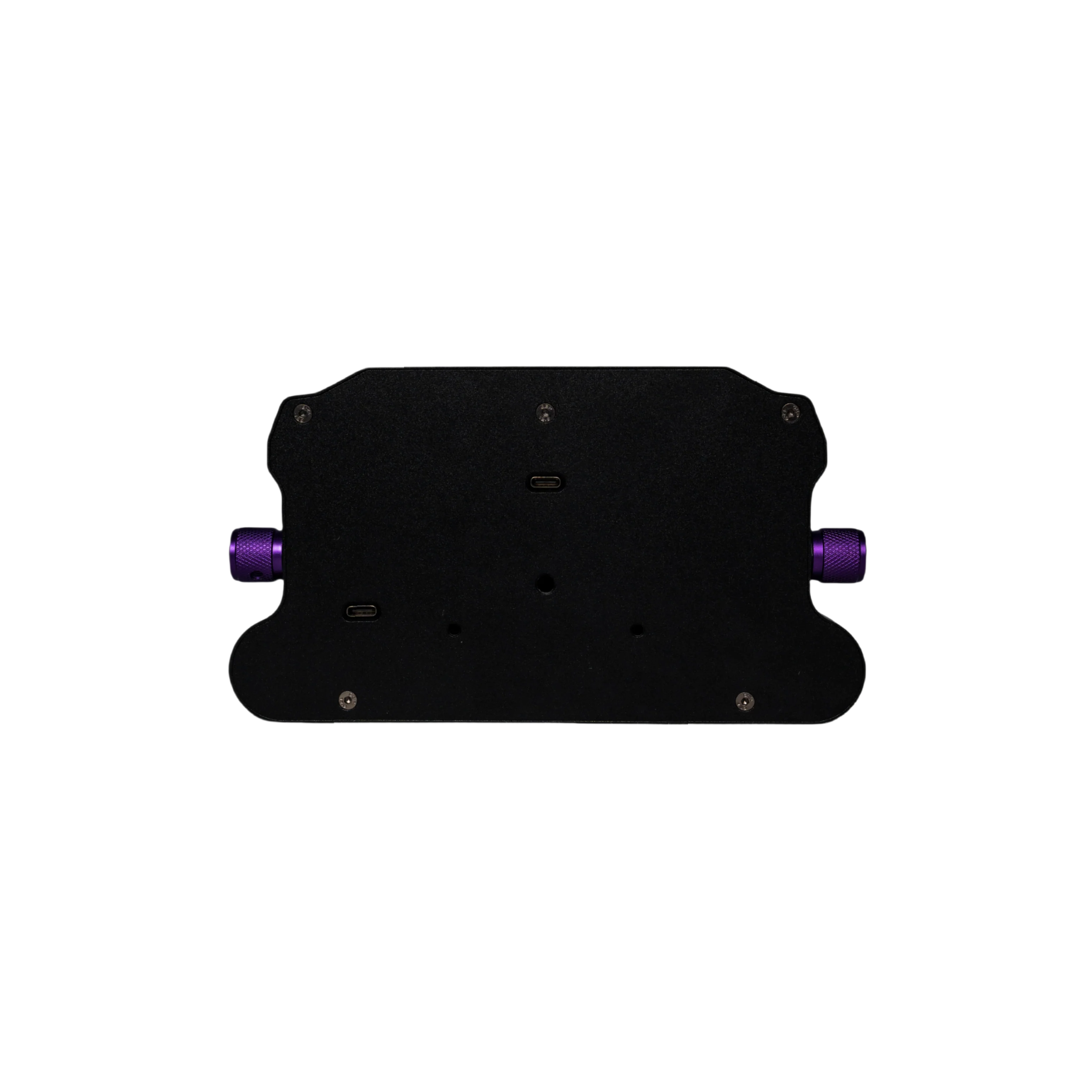

• Connectivity: Direct USB to PC, dual rear data ports for flexible setup

• Mounting Compatibility: Aluminium profile sim-rigs, compatible mounts/adapters for wheelbases etc.

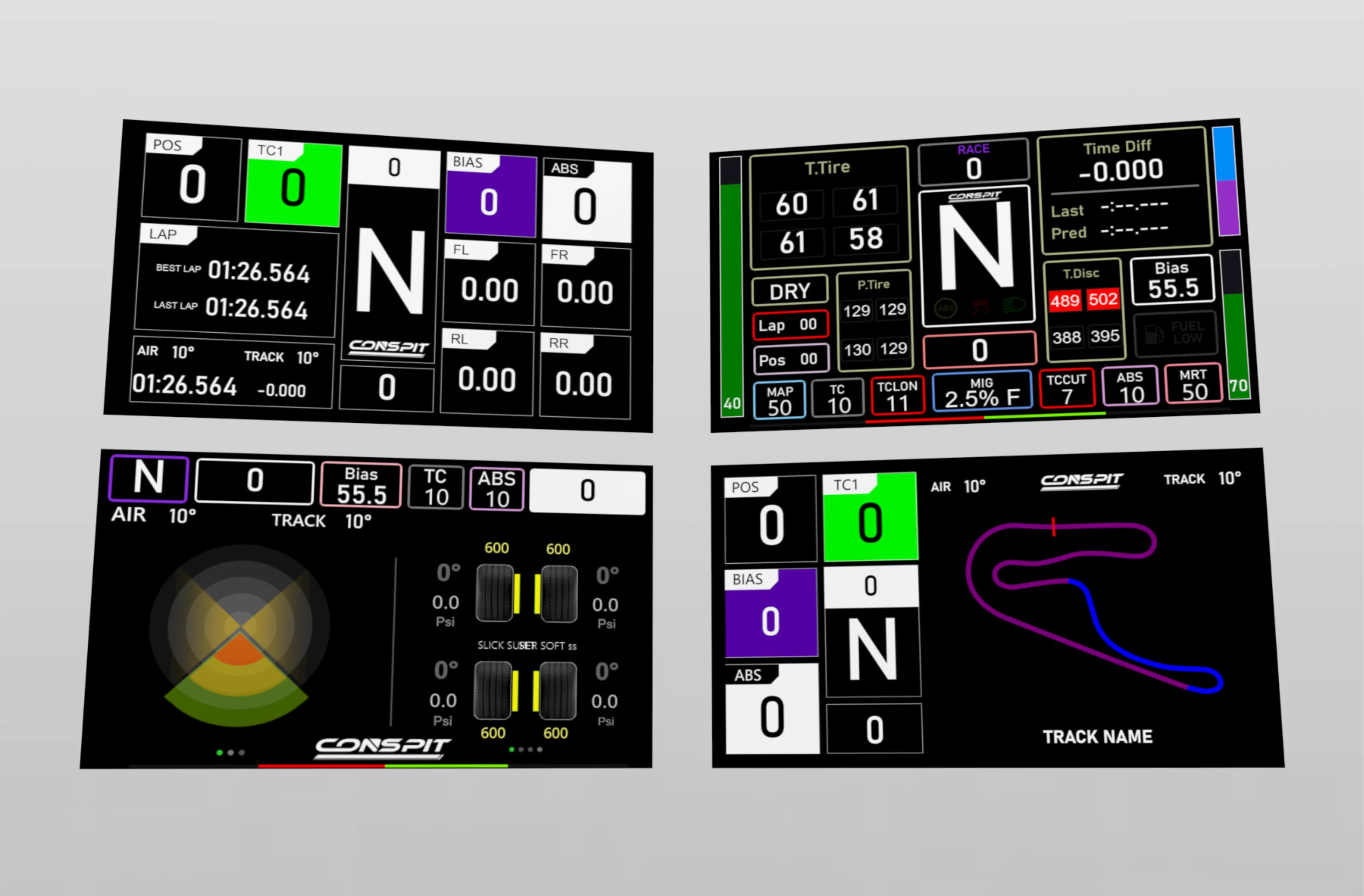

• Software Integration: Full SimHub support with presets, telemetry displays, adjustable layouts
